HOPPER WEIGHING SYSTEM

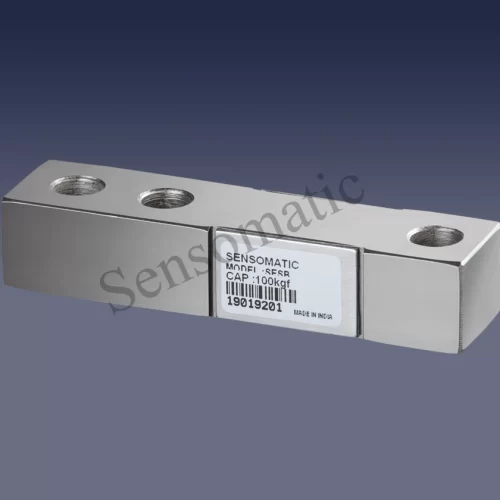

MODEL : SESB-1

single-ended-shear-beam-1

MODEL: SESB-1 The Single Ended Shear Beam load cell, designated as Model SESB-1, is specifically engineered for process weighing applications. This load cell features a rugged construction, sealed to the IP67 standard (with IP68 optional), and is robustly built to withstand harsh industrial conditions. Constructed from high nickel alloy steel, it is designed to resist impact loads.

Capacity Range (in kgf) : 50 /100 /200 /250 /300 /500 /750 / 900

Download MODEL : SESB-1

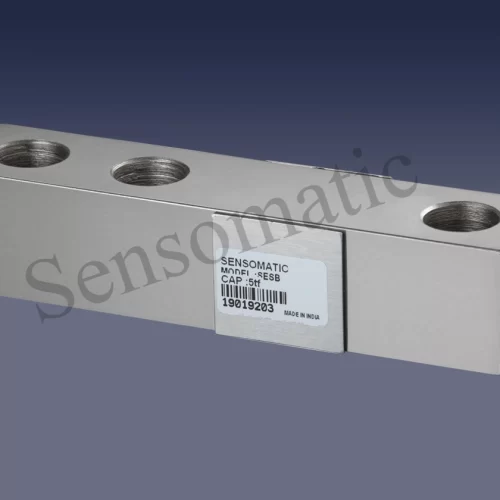

MODEL : SESB-2

single-ended-shear-beam-load-cell

The Single Ended Shear Beam load cell, identified as Model SESB-2, is tailored for process weighing applications. This load cell features a rugged design, sealed to the IP67 standard (with IP68 optional), making it robust and suitable for challenging industrial environments. Constructed from high nickel alloy steel, it is designed to resist impact loads.

.

Capacity Range (in tf) : 1.1 /1.5 /1.8 /2 /2.25 /2.5 /3.5 /5 /7 /9 / 11.5

Download MODEL : SESB-2

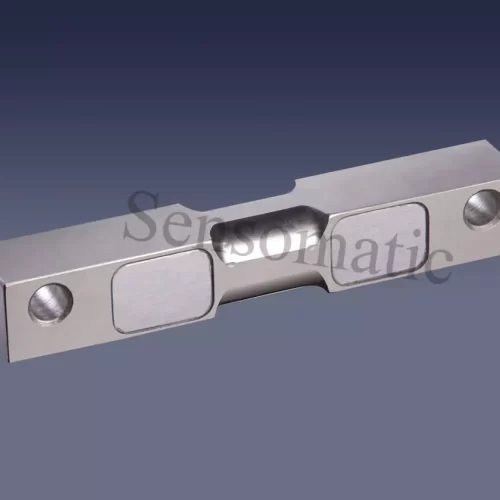

MODEL : DESB-T

double-ended-shear-beam-desb-t-64a3ce17b0b9a

The DESB-T model, a low-profile double-ended shear beam load cell, is constructed from high-nickel alloy steel with built-in lightning protection and sealed to the IP68 standard. Specifically engineered for tank and silo weighing applications, the mounting is designed to accommodate the thermal expansion and contraction of the vessel.

Capacity Range (in kgf) : 450 /750 /900 / 1350
Capacity Range (in tf) : 2.25 /5 /11.5 /15 /20 /27

Download MODEL : DESB-T

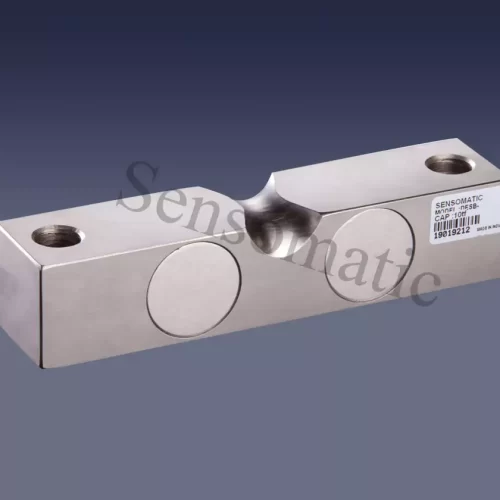

MODEL : DESB-S

double-ended-shear-beam-desb-s-64a3ce15e7161-1

The DESB-S model, a low-profile double-ended shear beam load cell, is crafted from high-nickel alloy steel, featuring built-in lightning protection and sealed to the IP68 standard. The Uni-link Loadcell is versatile, suitable for use in both dynamic (truck/in-motion weighing) and static applications (tank and silo weighing using a rigid mount assembly). The load cell’s design configuration ensures that the output is not affected by lateral loads.

Capacity Range (in tf) : 4.5 /5 /10 /11.5 / 15 /18/20

Download MODEL : DESB-S

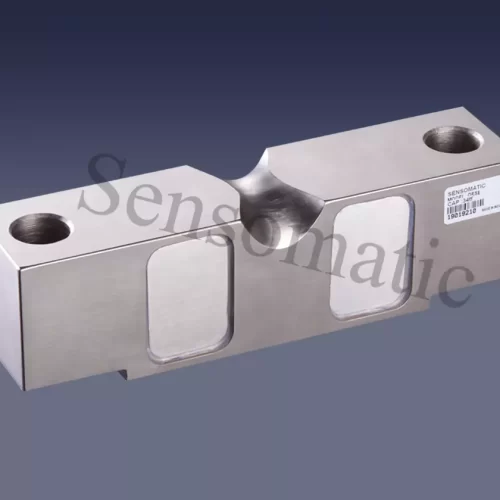

MODEL : DESB-R

double-ended-shear-beam-desbr-64a3ce139b627

The DESB-R model, a low-profile double-ended load cell, is constructed from high-nickel alloy steel, featuring built-in lightning protection and sealed to the IP68 standard. The Uni-link Loadcell is versatile, suitable for both dynamic (truck/in-motion weighing) and static applications (tank and silo weighing using a rigid mount assembly). The load cell’s design configuration ensures that the output is insensitive to eccentric load.

Capacity Range (in tf): 22.5 /30 /34 /45 /56.5 /75 / 100

Download MODEL : DESB-R

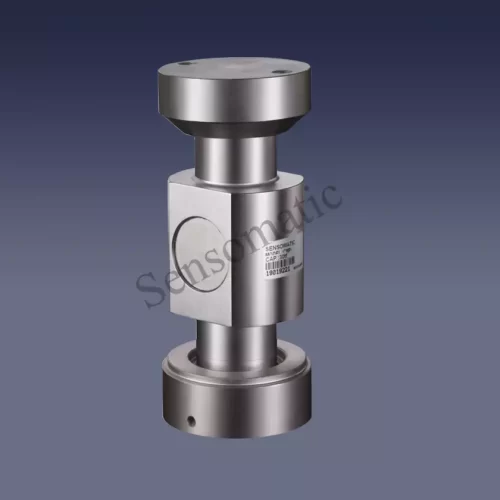

MODEL : CMP

cmp-64a3bea49b592

The CMP model, a compression load cell, features monolith construction and is crafted from high-nickel alloy steel. This load cell is well-suited for a robust design, and its unique construction allows for angular loading without compromising accuracy. Sealed to the IP68 standard, the load cell’s unique mounting cups, combined with an optimal radius, provide this rocker assembly load cell with accurate results and ease of installation.

Capacity Range (in tf) :20 /25 /30/40

Download MODEL : CMP

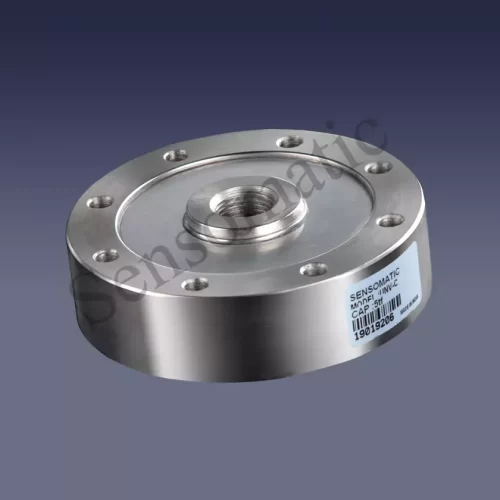

MODEL : UNV-C

unv-c-64a3beae70ccb-1

The UNV-C model, an ultra-high accuracy load cell, is high fatigue rated and designed with high-nickel alloy steel construction to withstand impact loads. Ideally suited for dynamic applications, it can be used in various compression mode applications and is sealed to the IP68 standard.

Capacity Range (in kgf): 200/300/500
Capacity Range (in tf): 1 /2 /3 /5 /10 /15 /20 /25 /30 /45 /50 /75 /100 /200 / 300

Download MODEL : UNV-C

MOUNTING ASSEMBLY

mounting-assembly

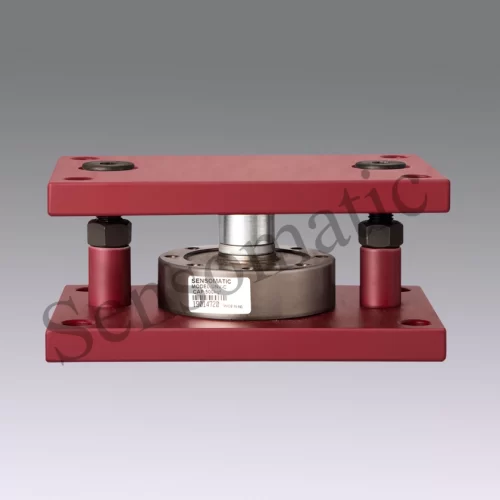

UNV-C Bin Mount Assembly
The UNV-C Weigh Modules with lift-off protection and a self-jacking arrangement have a very low profile, utilizing a ring torsion compression load cell with a self-aligning load button. This configuration is ideal for tank and silo weighing applications.

Download UNV-C-BIN-MOUNT-ASEMBLY

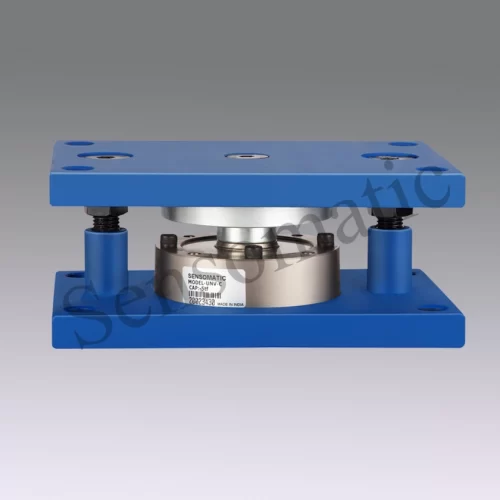

UNV-C TANK MOUNT ASSEMBLY

unv-c-tank-mount-assembly

The UNV-C Weigh Modules with lift-off protection and a self-jacking arrangement have a very low profile, utilizing a ring torsion compression load cell with a self-aligning load button. This configuration is ideal for tank and silo weighing applications.

Download MODEL : UNV-C TANK MOUNT ASSEMBLY

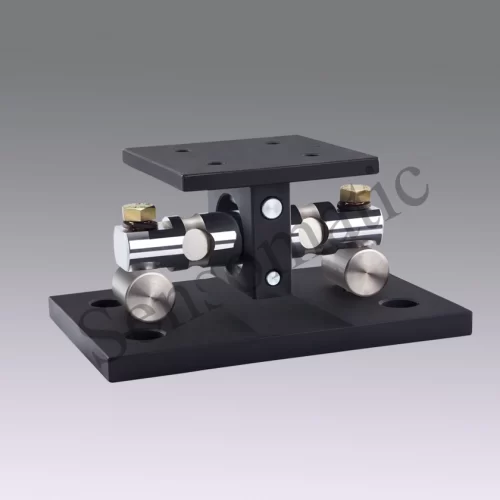

DESB – SILO WEIGHING

desb--silo-weighing

The Tank Weighing Assembly is a fully configured weighing assembly designed for use on tanks, silos, and hoppers. The assembly includes special hardened contact points and is designed to accommodate thermal expansion and contraction of the system.

Download MODEL : desb-silo-weighing

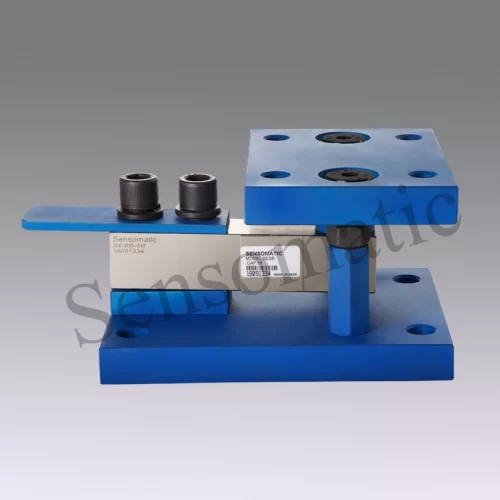

SESB – HOPPER MOUNT ASSEMBLYY

sesb--hopper-mount-assembly

The mounting is self-aligning due to the load button on top of the load cell at the loading point. This assembly comes with lift-off protection and a self-jacking arrangement, making it ideal for tanks and hoppers. It can withstand vibration and is designed for thermal expansion and contraction.

Download MODEL : SESB – HOPPER MOUNT ASSEMBLYY

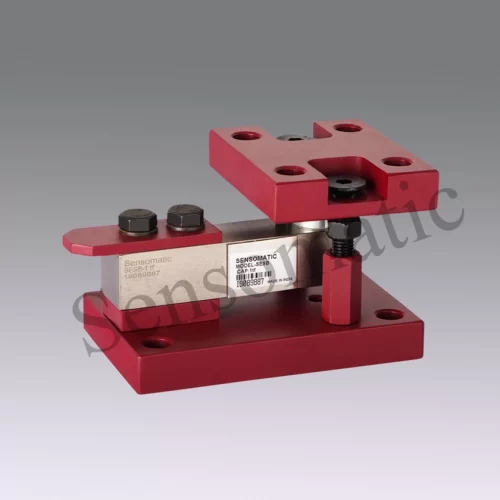

SESB – TANK MOUNT ASSEMBLY

sesb--tank-mount-assembly

The mounting is self-aligning due to the load button on top of the load cell at the loading point. This assembly comes with lift-off protection and a self-jacking arrangement, making it ideal for tanks and hoppers. It can withstand vibration and is designed for thermal expansion and contraction.

Download MODEL : SESB – TANK MOUNT ASSEMBLY

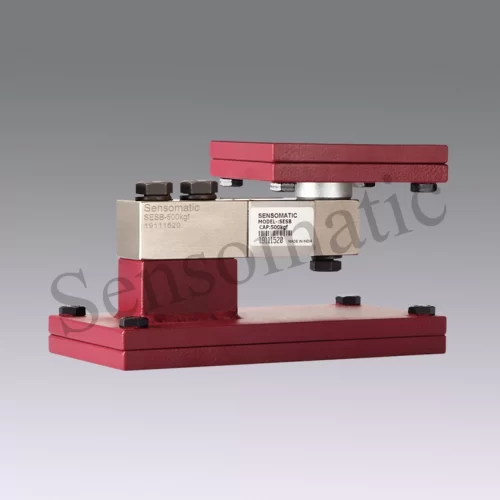

SESB – RIGID MOUNT ASSEMBLY

sesb--rigid-mount-assembly

(SESB – RMA)
This is a simple mounting arrangement that is easy to install, suitable for conveyor, tank, and hopper weighing applications.

Download MODEL : SESB-RIGID-MOUNT-ASSEMBLY

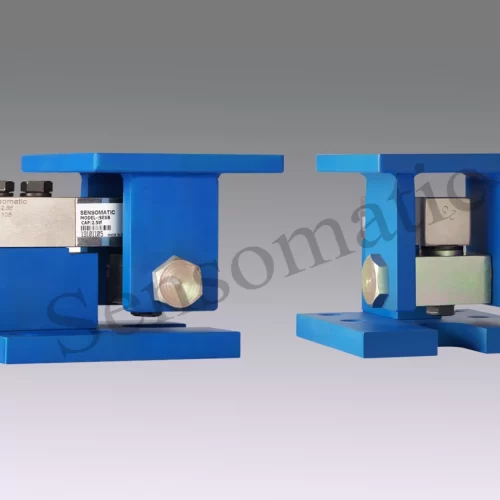

SESB – SILO MOUNT ASSEMBLY

sesb--silo-mount-assembly

The mounting is self-aligning due to the design of the mounting. This assembly is suitable for tanks and hoppers. It can withstand vibration and is designed for thermal expansion and contraction.

Download MODEL : SESB – SILO MOUNT ASSEMBLY

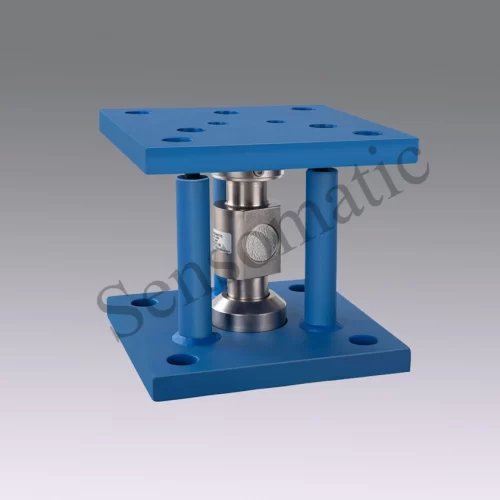

CMP SILO MOUNT ASSEMBLY

cmp-silo-mount-assembly

The CMP weigh module comes in a prestressed condition with lift-off protection and a self-jacking arrangement. This has been designed for tank and silo weighing applications where the vibration levels are slightly high.

Download MODEL : CMP SILO MOUNT ASSEMBLY

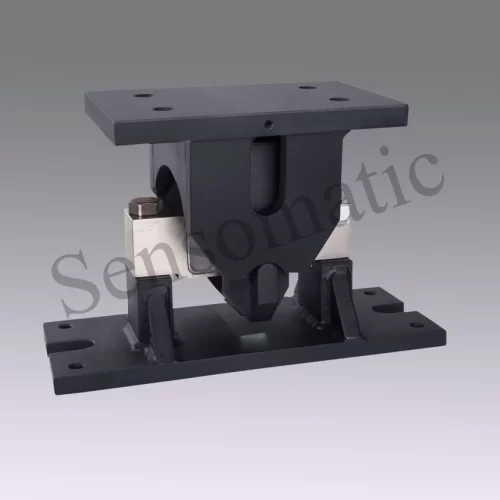

DESB – TRUCK SCALE ASSEMBLY

desb--truck-scale-assembly

The Truck Scale Assembly designed for the weighbridge is called the Uni-Link Assembly. This is self-aligning, and the rocking movement allows controlled floatation of the deck, thereby eliminating the use of stay-rods.

Download MODEL : DESB TRUCK SCALE ASSEMBLY

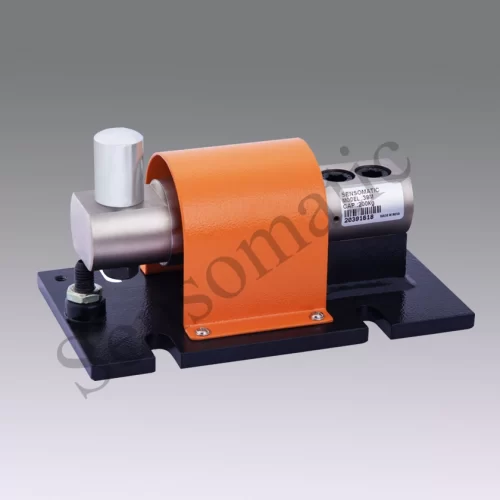

BBM – CONVEYOR MOUNT

bbm--conveyor-mount

The mounting is designed for conveyor scales and small bin weighing systems. The top loading button can be modified to act as a floating or fixed assembly, based on usage.

Download MODEL : BBM – CONVEYOR MOUNT

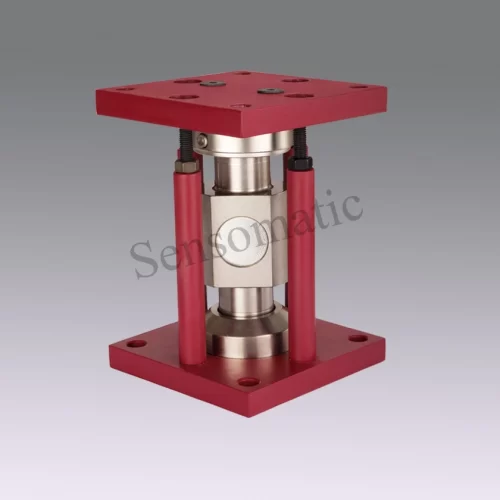

CMP-HOPPER MOUNT ASSEMBLY

cmp-hopper-mount-assembly

The low-profile CMP weigh module comes in a prestressed condition with lift-off protection and a self-jacking arrangement. This has been designed for tank and silo weighing applications where the vibration levels are slightly high.

Download MODEL : CMP-HOPPER MOUNT ASSEMBLY

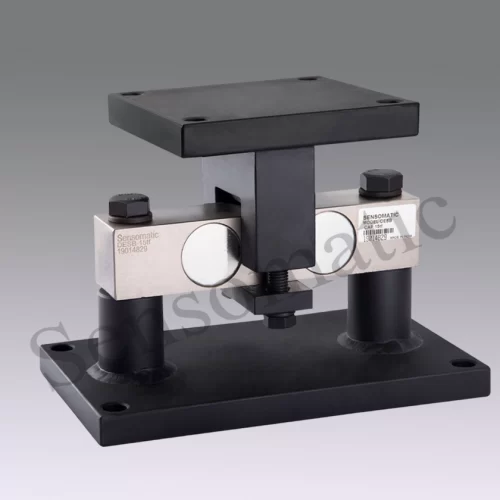

DESB – RIGID MOUNT ASSEMBLY (DESB-RMA)

desb--rigid-mount-assembly-desb-rma

The Rigid Mount Assembly, with lift-off protection and a self-jacking arrangement (optional), is ideal for static and dynamic applications and is designed for thermal expansion and contraction of the system. This is ideal for tank, silo, and rail-mounted weighing systems. It is designed for all DESB models.

Download MODEL : DESB RIGID MOUNT ASSEMBLY

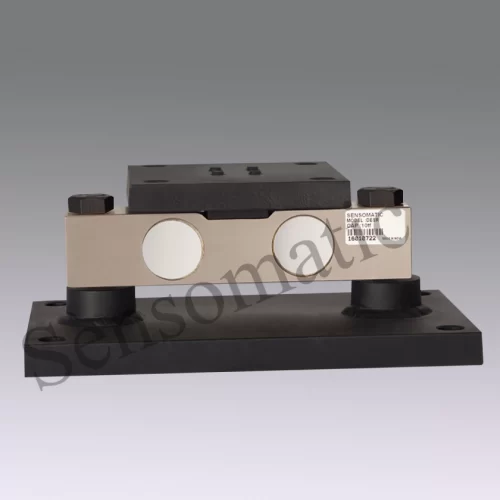

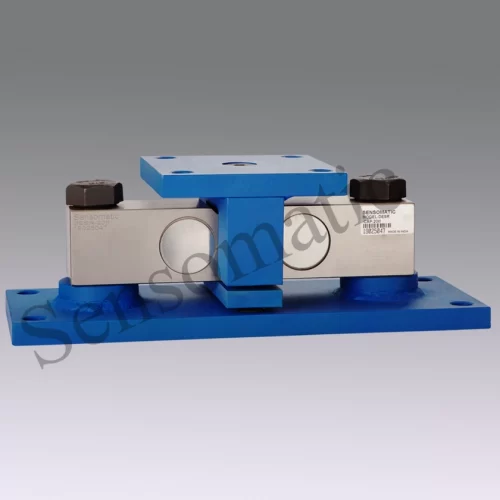

DESR- LOW PROFILE MOUNTING

desr-low-profile-mounting-2

The low-profile Rigid Mount Assembly is ideal for static and dynamic applications. This is ideal for tank, silo, and in-motion weighing (for axle weight measurement) systems. It is designed for all DESB models.

Download MODEL : DESR- LOW PROFILE MOUNTING

DESR- LOW PROFILE MOUNTING

desr-low-profile-mounting

The Low Profile Rigid Mount Assembly Is Ideal for Static & Dynamic Application. This is Ideal for Tank / Silo & In motion weighing ( for axle weight Measurement) system . This is Designed to All DESB Models.

Download MODEL : DESR- LOW PROFILE MOUNTING

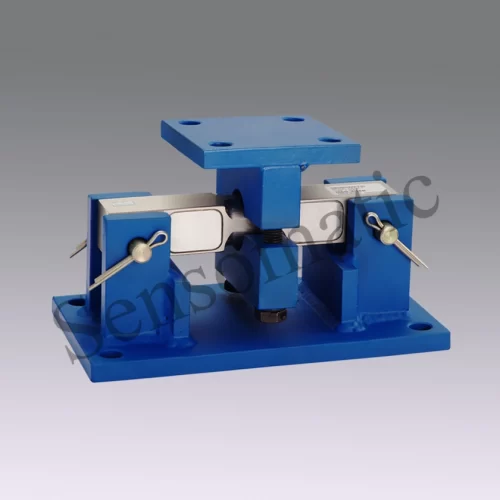

DESB – T – TANK MOUNT ASSEMBLY (LOW CAPACITY)

desb--t--tank-mount-assembly-low-capacity

The DESB-T Laddle Weighing Assembly is a fully configured weighing assembly ideal for use on Laddle Weighing Application. The assembly includes special hardened contact points & is designed for Thermal Expansion & contraction of the system.

Download MODEL : DESB – T – TANK MOUNT ASSEMBLY (LOW CAPACITY)

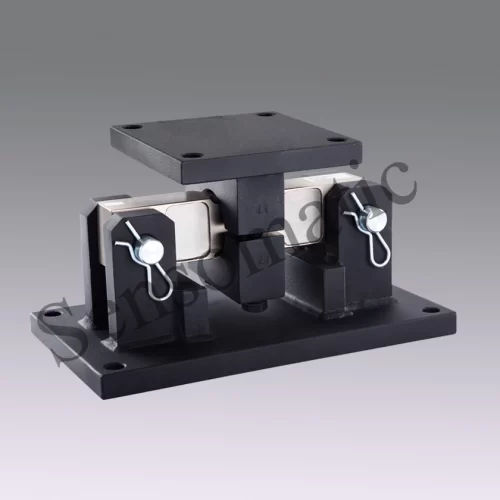

DESB-T- TANK MOUNT ASSEMBLY (HIGH CAPACITY)

desb-t-tank-mount-assembly-high-capacity

The DESB-T Tank Weighing Assembly is a fully configured weighing assembly ideal for use on tanks, silos and hoppers. The assembly includes special hardened contact points & is designed for Thermal Expansion & contraction of the system.

Download MODEL : DESB-T- TANK MOUNT ASSEMBLY (HIGH CAPACITY)

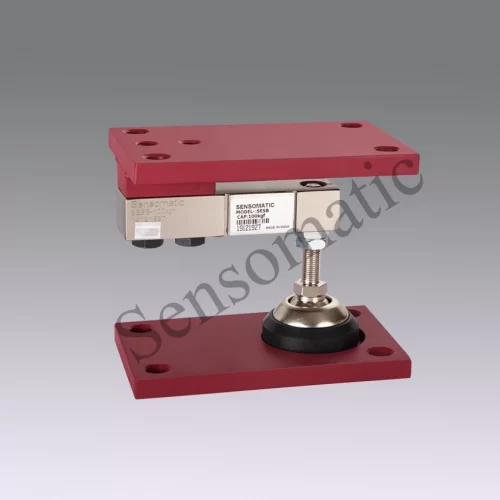

SESB – FOOT MOUNT ASSEMBLY

sesb--foot-mount-assembly

This is a simple & Versatile Mounting which has a rubber base to dampen vibration & also has self-aligning capability. This is used in conveyor/platform scales.

Download MODEL : SESB – FOOT MOUNT ASSEMBLY
