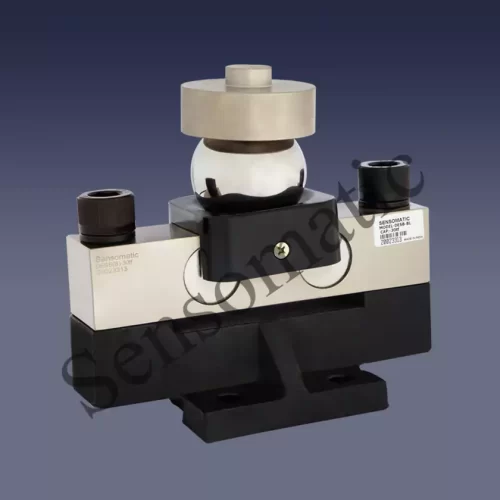

MODEL : DESB-BL
Double Ended Shear Beam Cup and Ball type load cell Model DESB-BL is suitable for truck scale and weighbridge applications. It has rugged construction made of High nickel alloy steel for durability. It is also provided with IP68 sealing to withstand harsh conditions. In-built lightning protection circuit provides enhanced resilience against transient electrical surges. This load cell converts mechanical force into digital data, providing precise weight or force measurements.
Capacity Range (in tf) : 10 / 20 / 30 / 40

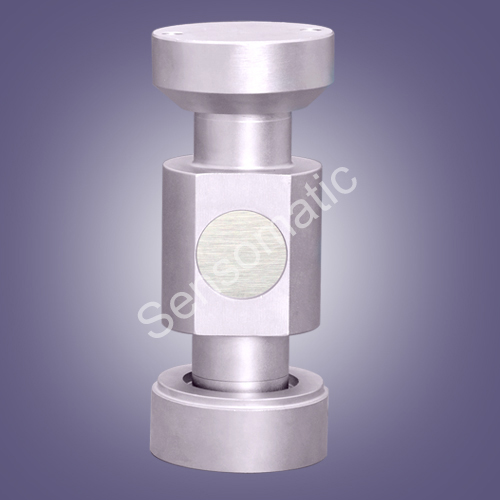

MODEL :CMP
The Reliable Compression Load Cell Model CMP is fabricated from high-strength nickel alloy steel, ensuring unwavering tenacity and reliability. IP68 certification guarantees resilience in harsh environments. The load cell is designed in a way that angular loading will not affect the accuracy. The unique mounting cups combined with optimal radius of Load cell will provide accurate results and this rocker type load cell is easier to install. This load cell converts mechanical force into digital data, providing precise weight or force measurements.
Capacity Range (in tf) :20 /25 /30/40

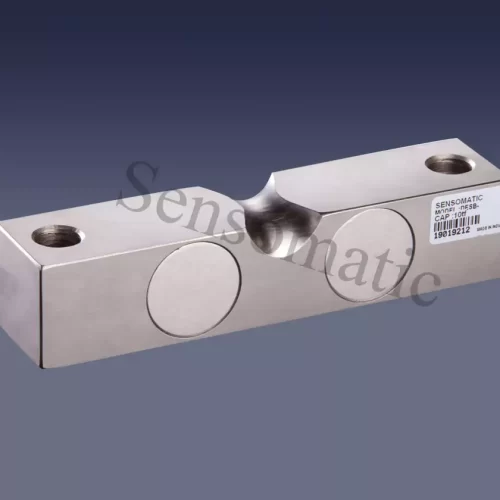

MODEL :DESB-S
Reliable Double Ended Shear Beam Load Cell Model DESB-S is fabricated from high-strength nickel alloy steel, ensuring unwavering durability and reliability. It is integrated with lightning protection to safeguard against electrical transients. IP68 certification guarantees resilience in harsh environments. Adaptable for both dynamic (in-motion truck weighing) and static applications (tank/silo weighing with rigid mount assembly). The Load cell is designed in a way that the output of the load cell will not be affected by lateral loads. This load cell converts mechanical force into digital data, providing precise weight or force measurements.
Capacity Range (in tf) : 4.5 /5 /10 /11.5 / 15 /18/20

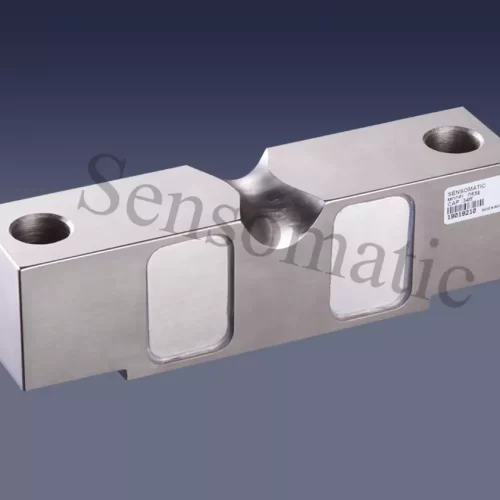

MODEL :DESB-R
Reliable Double Ended Shear Beam Load Cell Model DESB-R is fabricated from high-strength nickel alloy steel, ensuring unwavering durability and reliability. It is integrated with lightning protection to safeguard against electrical transients. IP68 certification guarantees resilience in harsh environments. Adaptable for both dynamic (in-motion truck weighing) and static applications (tank/silo weighing with rigid mount assembly). The Load cell is designed in a way that the output of the load cell will not be affected by lateral loads. This load cell converts mechanical force into digital data, providing precise weight or force measurements.
Capacity Range (in tf): 22.5 /30 /34 /45 /56.5 /75 / 100
