S-TYPE LOAD CELL

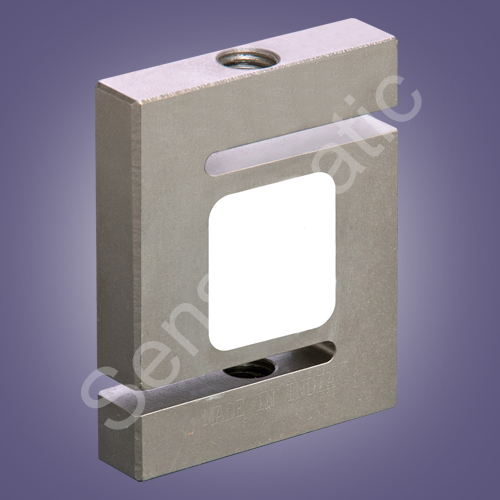

Model : SB-MINI
Miniature S Type load cell Model SB-mini, is a compact Loadcell for Special applications.
Capacity Range (in kgf): 10 / 25/ 50/ 100

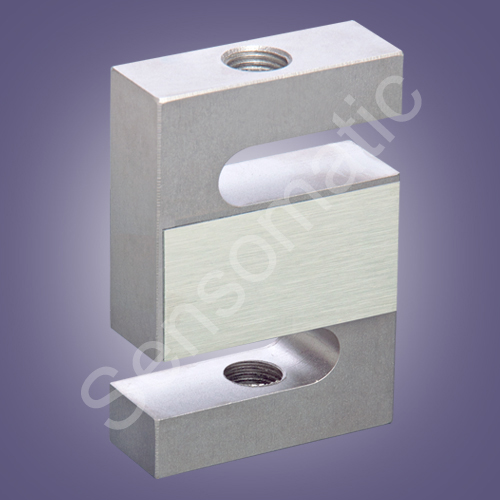

Model : SB-S
S Type load cell is a compact load cell constructed of high nickel alloy steel. This Load cell is designed for High Precision Weight and Force measurement application. The load cell are made of high alloy nickel steel and sealed to IP67 Standard load cell. This is a Universal Load Cell
Capacity Range (in kgf): 50 / 100 /150 /200 /250 /350 /500 /750 /900
Capacity Range (in tf): 1 /1.1 /1.2 /1.5 /1.8 /2 /2.2 / 2.5

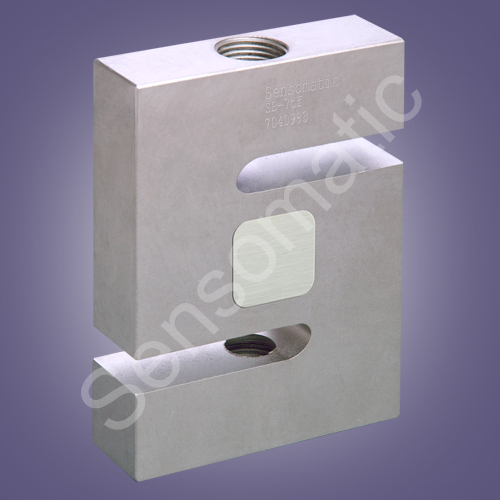

Model : SB
The S type load cell Model SB-S is suitable for tension and compression application . This Load cell is designed for High Precision Weight and Force measurement application. The load cell are made of high alloy nickel steel and sealed to IP67 Standard load cell.
Capacity Range (in tf): 3.5 /5 /7 /10 / 11.5
MODEL : SB-S(P)
The S-type load cell is a compact load cell constructed of high nickel alloy steel. This Load cell is designed for High Precision Weight and Force measurement applications. The load cell is made of high-alloy nickel steel and sealed to an IP67 Standard load cell. This is a Universal Load Cell
Capacity Range (in kgf): 250 / 350 / 450
Capacity Range (in tf): 1 /2/1.35
