COMPRESSION LOAD CELL

Model : CMP

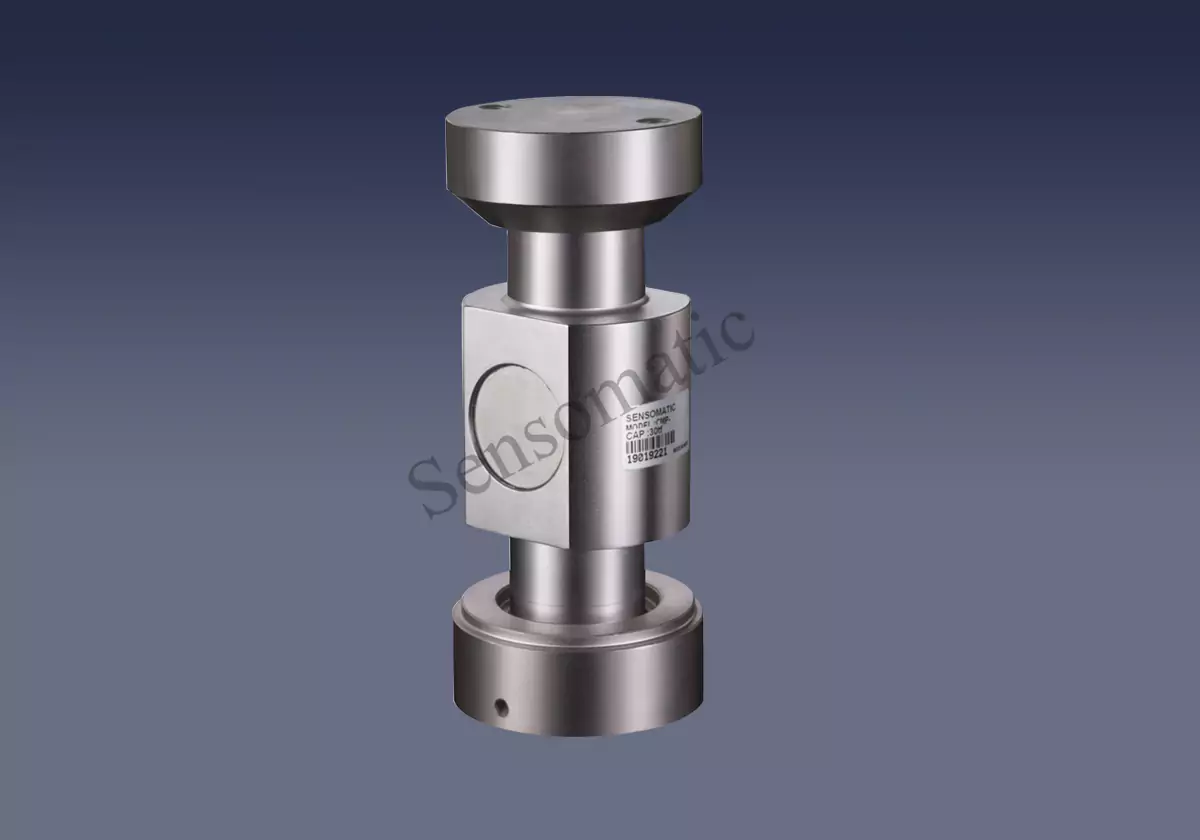

CMP

The Compression load cell Model CMP is of Monolith Construction and is made from  high nickel alloy steel. The Loadcell is suitable for robust in design & due to its unique construction in design, this allows angular loading without affecting the accuracy. The Load cell is sealed to IP68 standard.  The unique mounting cups  combined with optimal radius of Loadcell provides this rocker assembly Load cell with accurate results and is easier to Install.

Capacity Range (in tf):  5 /10 /15 /20 /25 /30 / 40

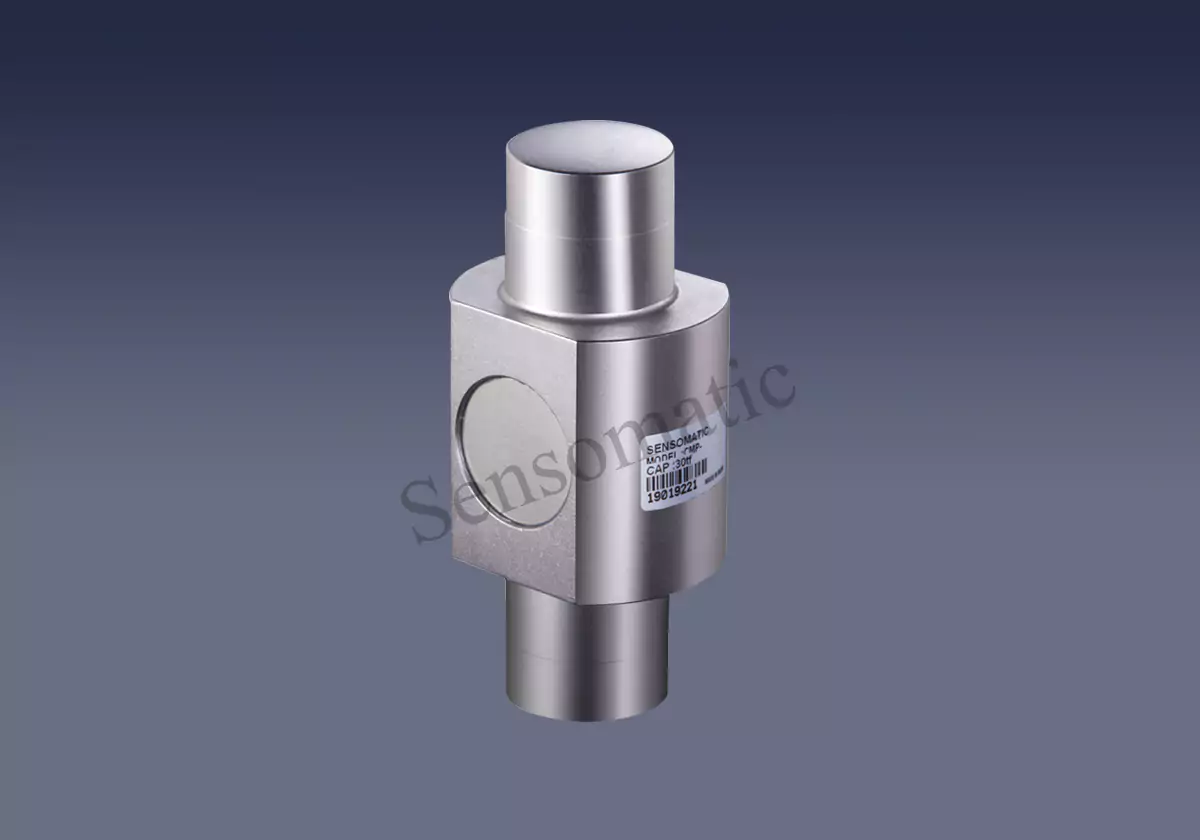

Model : CMP-SP

CMP-SP

The Compression load cell Model CMP-SP is of Monolith Construction and is made from  high nickel alloy steel. The Loadcell is suitable for robust in design & due to its unique construction in design, this allows angular loading without affecting the accuracy. The Load cell is sealed to IP68 standard. The Mounting can be designed as per your specification for various application, including Silo weighing.

Capacity Range (in tf):    5 /10 /15 /20 /25 /30 / 40

MODEL : BTN

BTN

The Button type load cell Model BTN is designed for compression application where space is limited. This load cell is constructed from High Nickle alloy steel for use in level measurement application in Tank & Silo.

Capacity Range (in kgf):500

Capacity Range (in tf)2 /3 /5 /10 /20 / 30

Download MODEL : CMP SP Details

MODEL : BTS

BTS

The Button type load cell Model BTS is designed for compression applications where space is limited. This load cell is constructed from High Nickle alloy steel for use in level measurement applications in Tank & Silo.

Capacity Range (in tf):45/ 50

Download MODEL : CMP SP Details

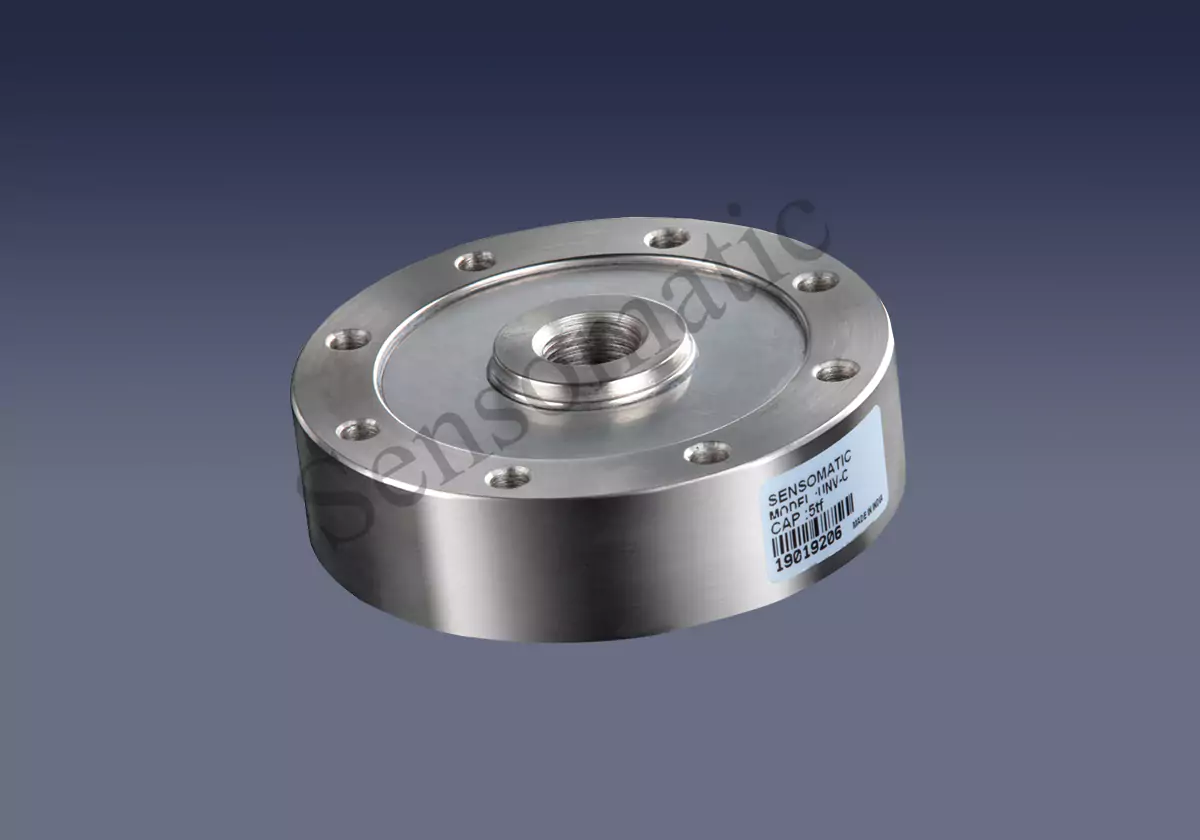

Ultra High accuracy Loadcell Model UNV-C

MODEL : UNV -C

This Ultra High accuracy load cell Model UNV-C is High Fatigue Rated & designed from High Nickel alloy steel construction for withstanding Impact Load. Ideally, suitable for Dynamic applications & can be used for various applications in Compression mode Sealed to IP68 standard.

Capacity Range (in kgf): 200/300/500

Capacity Range (in tf): 1 /2 /3 /5 /10 /15 /20 /25 /30 /45 /50 /75 /100 /200 / 300

Download MODEL : CMP SP Details

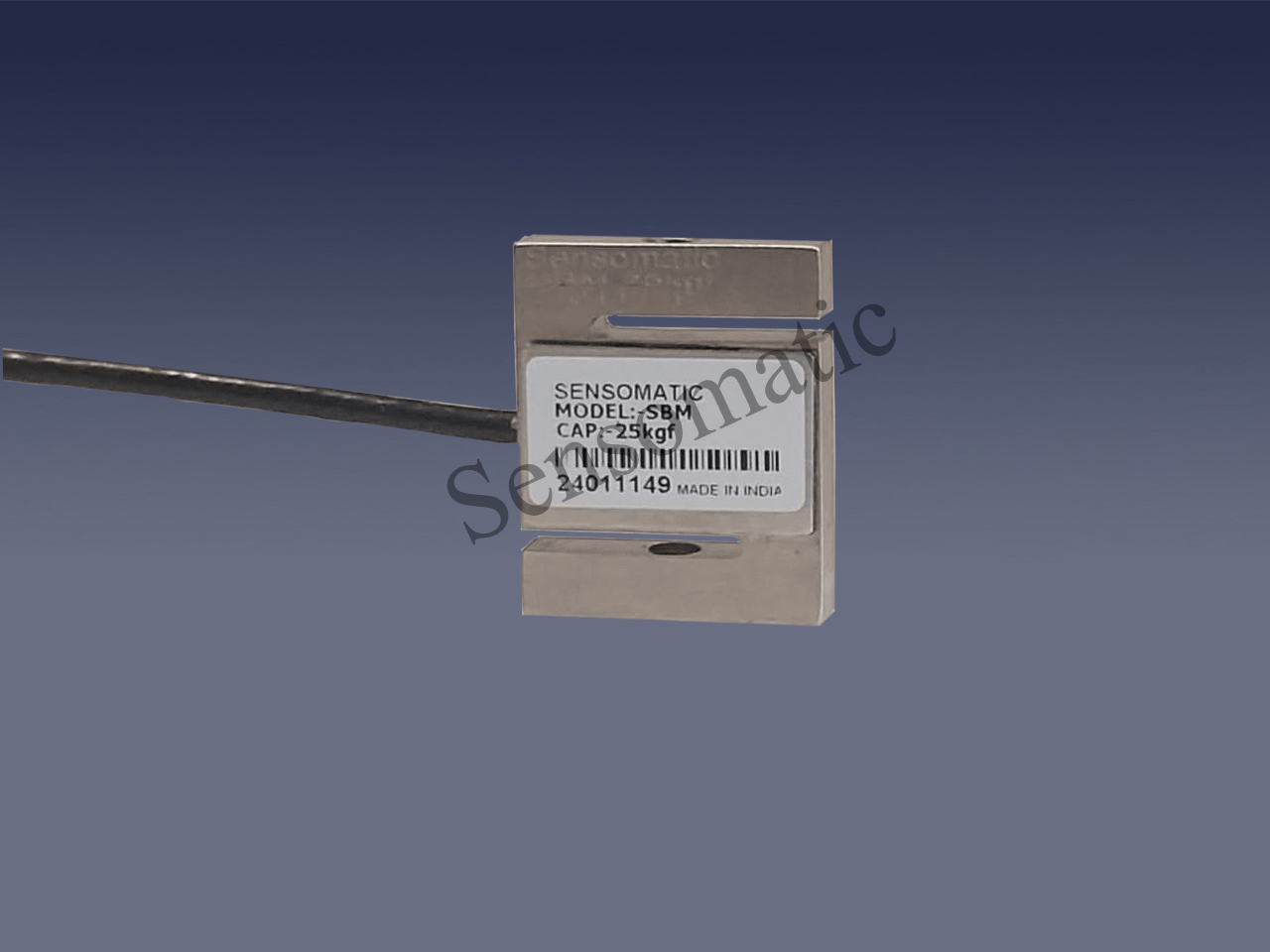

SB-Mini

MODEL : SB-MINI

This Ultra High accuracy load cell Model UNV-C is High Fatigue Rated & designed from High Nickel alloy steel construction for withstanding Impact Load. Ideally, suitable for Dynamic applications & can be used for various applications in Compression mode Sealed to IP68 standard.

Capacity Range (in kgf): 200/300/500

Capacity Range (in tf): 1 /2 /3 /5 /10 /15 /20 /25 /30 /45 /50 /75 /100 /200 / 300

Download MODEL : CMP SP Details

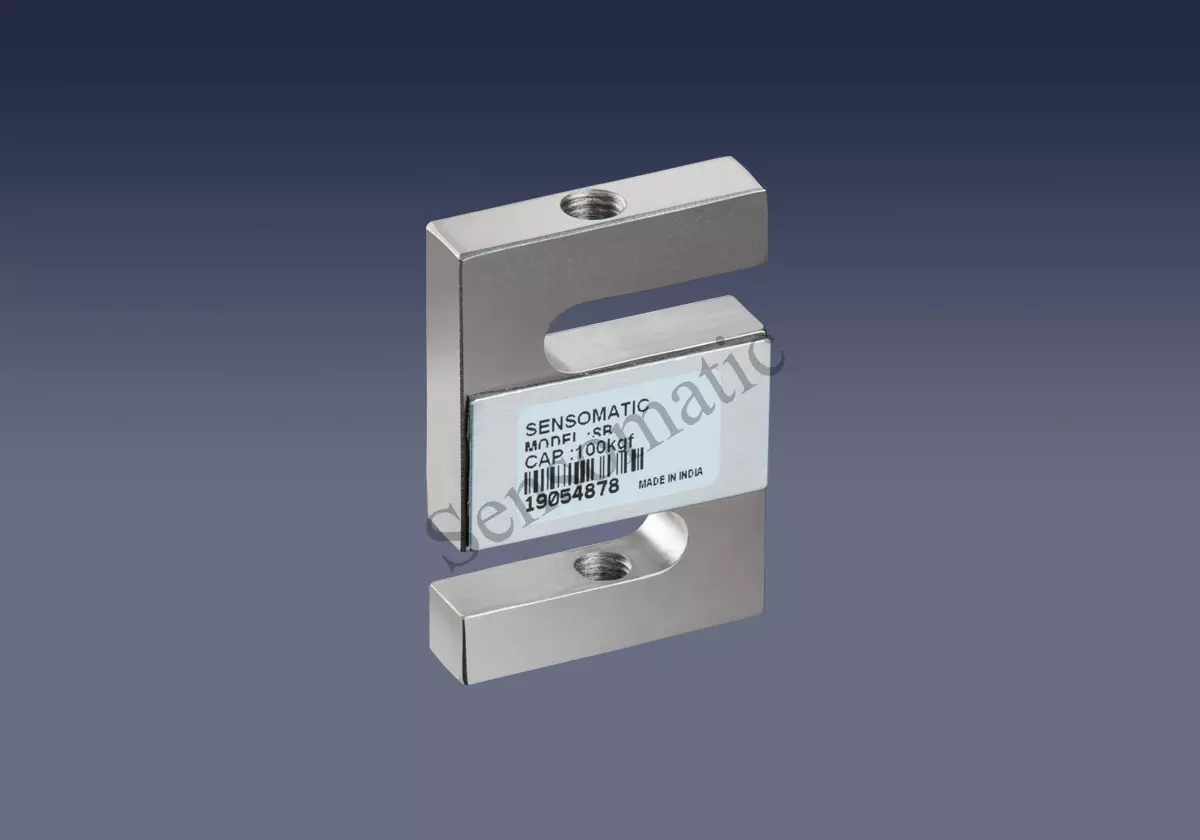

SB-S

MODEL : SB-S

The S Type load cell is a compact load cell constructed of high nickel alloy steel. This load cell is designed for High Precision Weight and Force measurement applications. The load cells are made of high alloy nickel steel and sealed to IP67 Standard load cell. This is a Universal load Cell.

Capacity Range (in kgf) : 10/11/25/ 50 / 100 /150 /200 /250 /350 /500 /750 /900

Capacity Range (in tf) : 1 / 1.1 / 1.5 / 1.8 / 2 / 2.2 / 2.5

Download MODEL : CMP SP Details

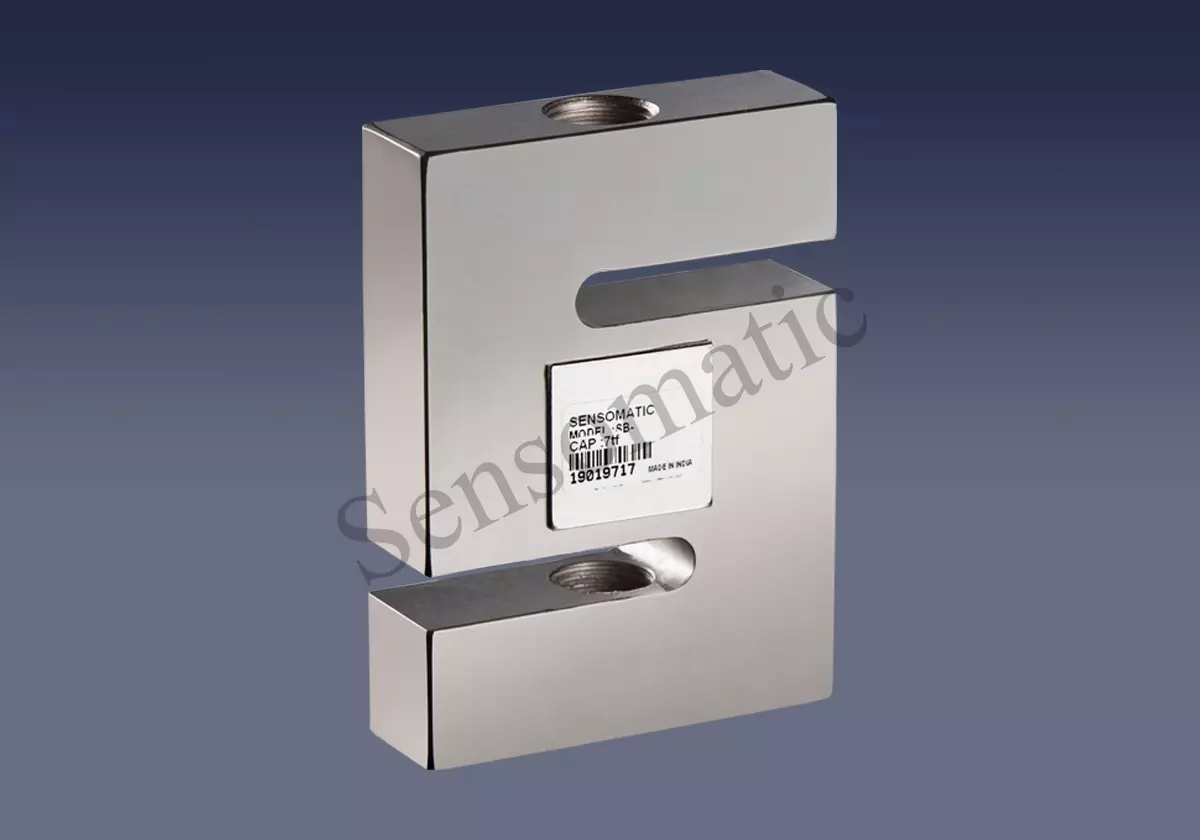

SB4

MODEL : SB

The S type load cell Model SB-S is suitable for tension and compression applications. This Load cell is designed for High Precision Weight and Force measurement applications. The load cell are made of high alloy nickel steel and sealed to IP67 Standard load cell.

Capacity Range (in tf) : 3.5 /5 /7 /10 / 11.5

Download MODEL : CMP SP Details

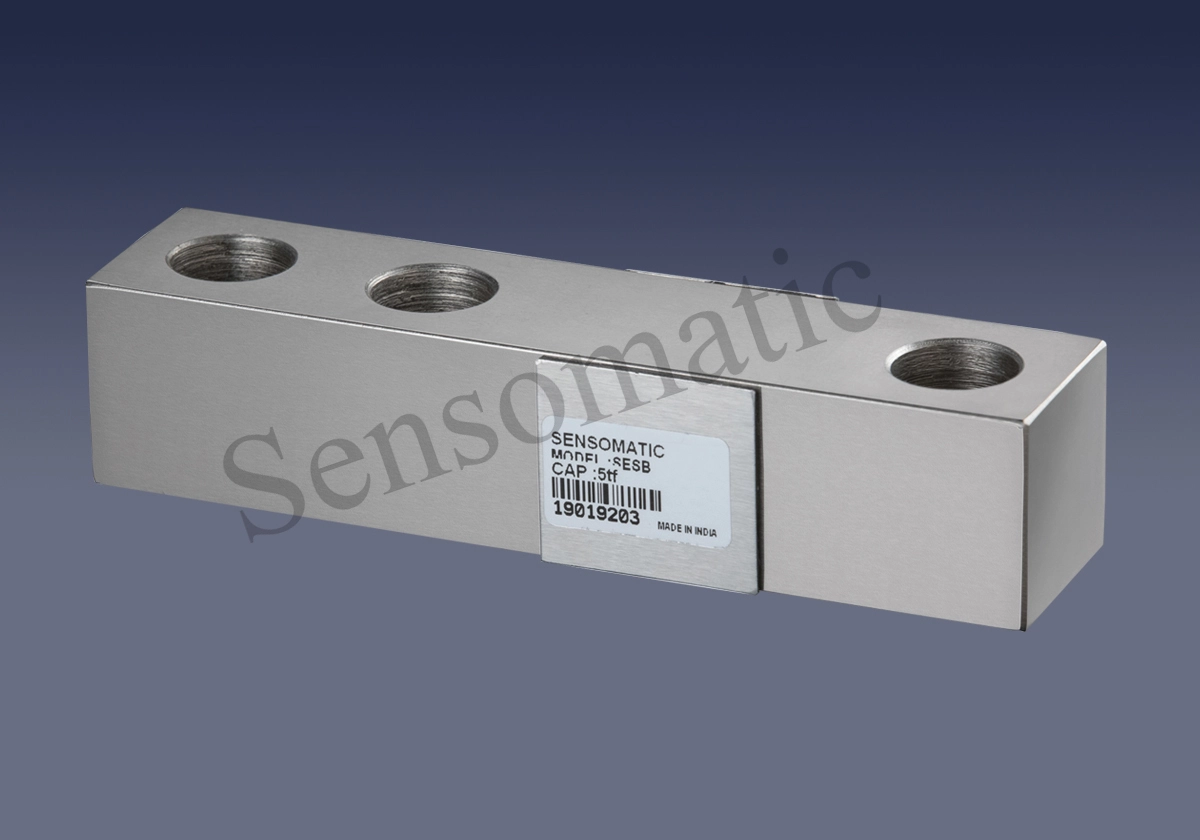

SESB

MODEL : SESB

The Single Ended Shear Beam load cell Model SESB is designed for process weighing applications. This load cell is rugged & sealed to IP67 standard (IP68 is optional) & robust in construction, suitable for harsh industrial applications. This is constructed from High Nickel Alloy Steel and designed to withstand impact load.

Capacity Range (in kgf): 50 /100 /200 /250 /300 /500 /750 / 900

Download MODEL : CMP SP Details

cmp-cc-64a3bea49e5ce

CMP-CC

This is a Universal load cell (for use in both Tension & Compression Mode). This is compact & is suitable for Testing Machines & Special Purpose machines.

Capacity Range (in kgf) : 500/750/900

Capacity Range (in tf) : 1 /1.1 /1.5 /1.8 /2 / 2.5

Download MODEL : CMP SP Details
